Hi All,

I tried to find this by searching, but only came up with the RCA connector 1 pinout.

My problem is I have no "brown" connector for my backup camera input. I have two white, a red, and a yellow (rear monitor and audio, and the "other" white is unlabeled.

Thanks

-Dave

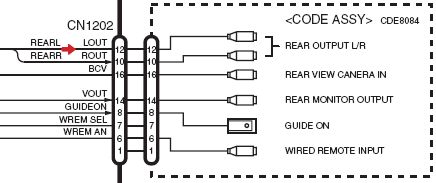

CORD ASSY (RCA OUTPUT II) 16Pin ($35.84)

Part number CDE8084

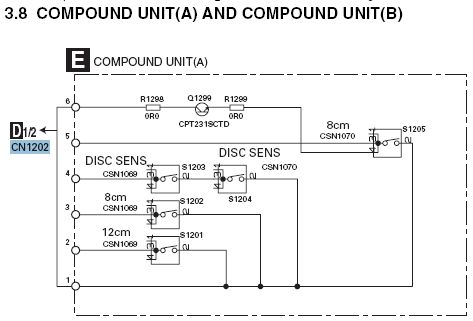

Pin 1 - PHOTOSNES (the "2nd wire" in the 2 wire bypass)

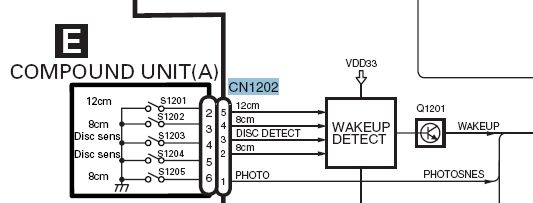

Pin 2 - WAKEUP DETECT (12cm - 8cm) ??

Pin 3 - WAKEUP DETECT (8cm -12cm) ??

Pin 4 - WAKEUP DETECT (Disc Sens (8cm))

Pin 5 - WAKEUP DETECT (Disc Sens (12cm))

Pin 6 - Wired remote input

Pin 7 - ?[related to pin 6]

Pin 8 - Guide On (Yellow/black aka mute)

Pin 9 - Rear Monitor video GROUND

Pin 10 - Rear Monitor video Output (red)

Pin 11 - Rear Monitor left audio GROUND

Pin 12 - Rear Monitor left audio Output (white)

Pin 13 - Rear Monitor video Output GROUND

Pin 14 - Rear Monitor video Output (Yellow)

Pin 15 - Rear View Camera GROUND

Pin 16 - Rear View Camera in (brown)

Thanks so much!
