Posted Oct 30, 2006 · 00:06 UTC#1

ducatiboy

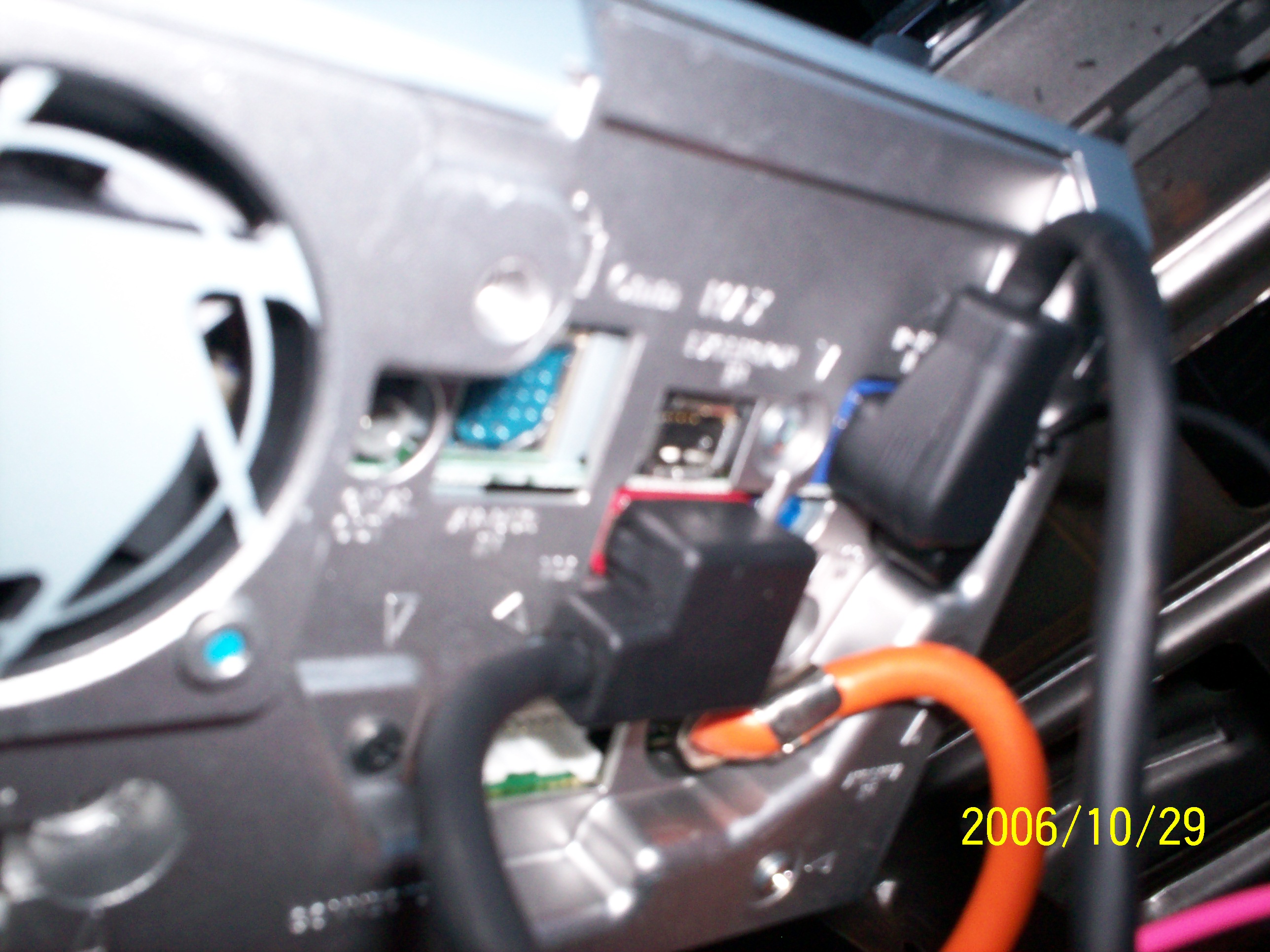

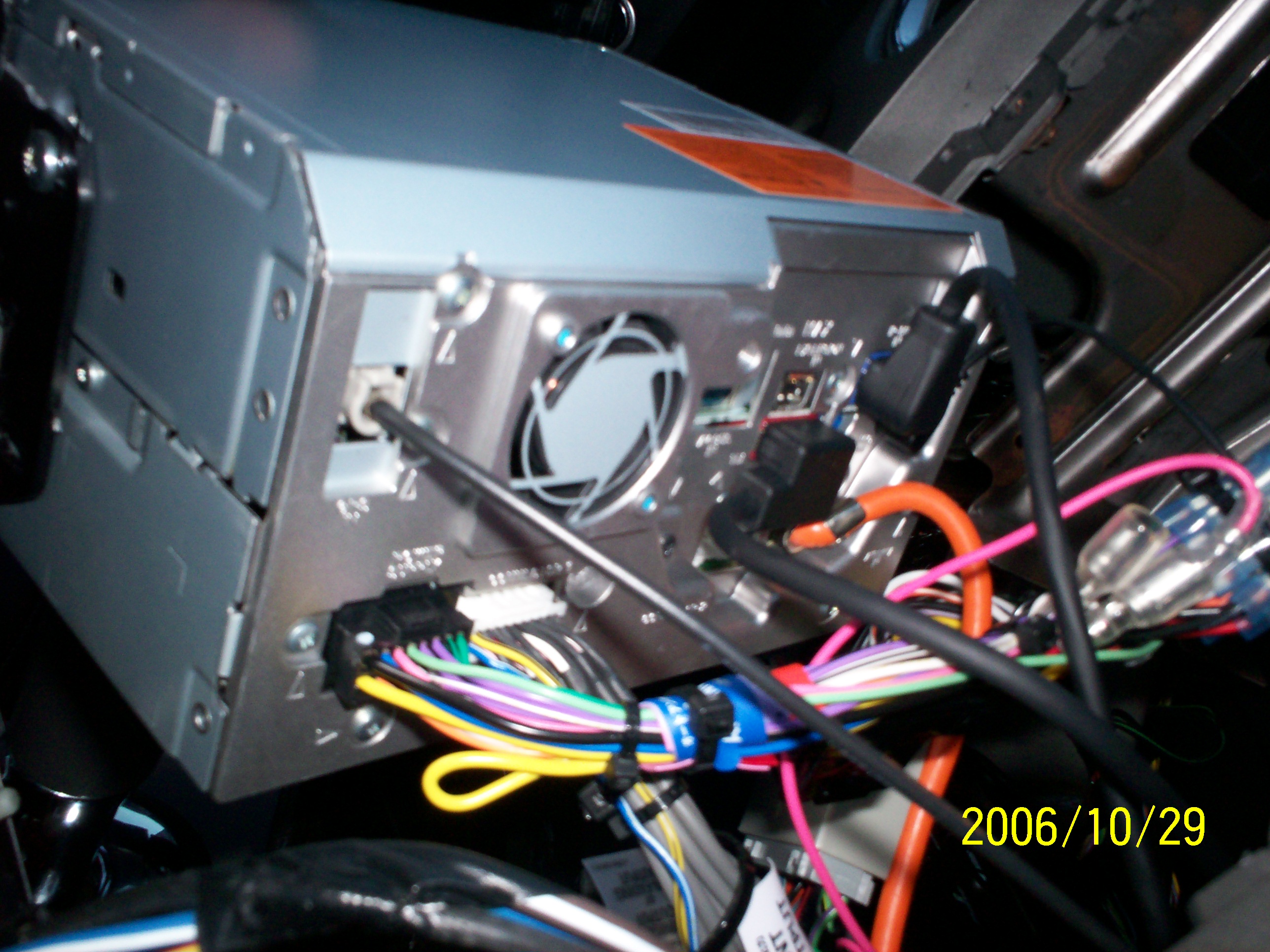

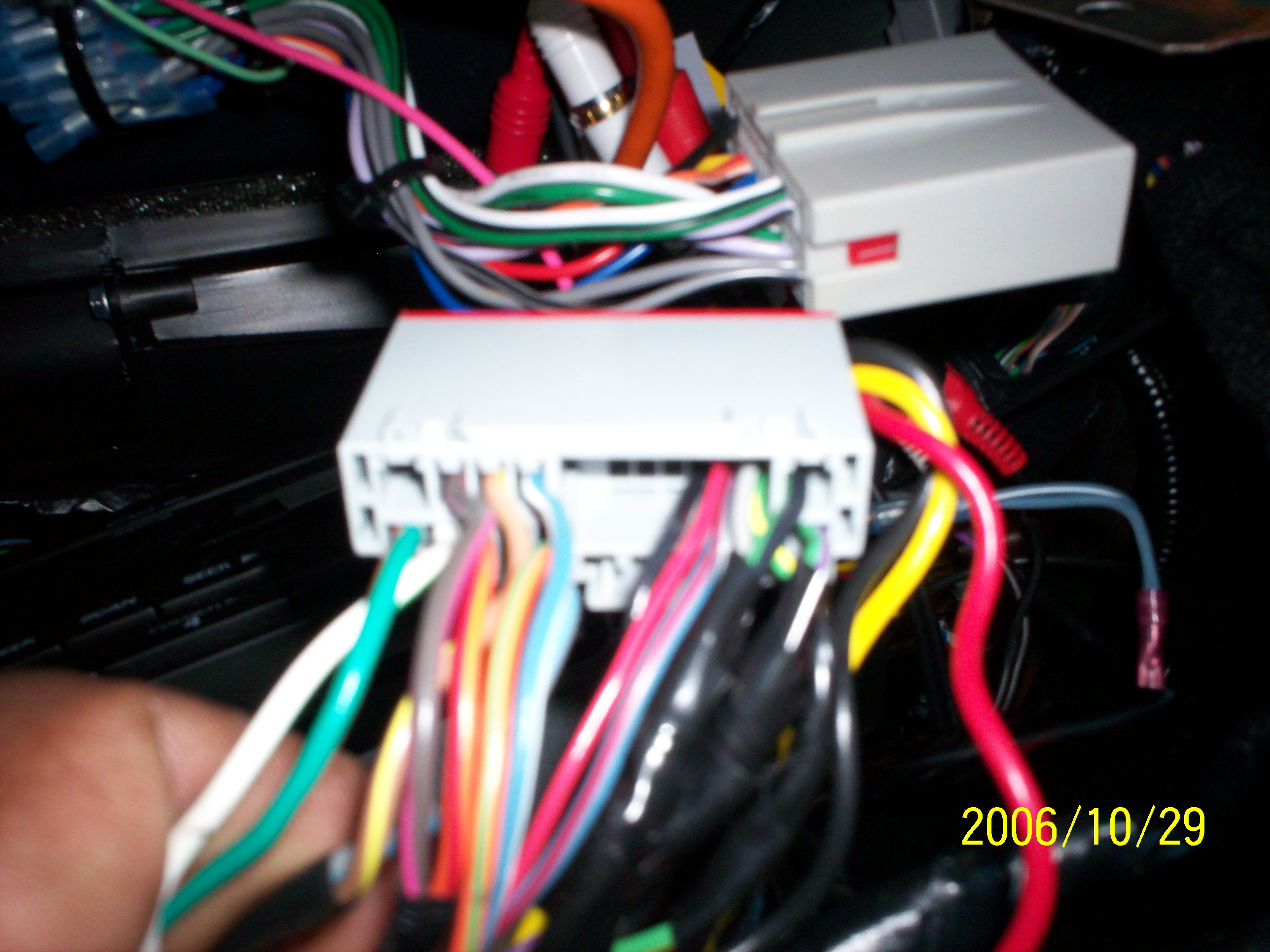

I looked at the back of my Z1 and connection 2 is not there. Not sure where it is but I will include pictures. Also, maybe I should provide a little history. My orginal f150 head unit is buried in the back of the dash. It was needed for the overhead rail dvd player to work. So the installer rigged it somehow that it still works. I'm not sure if that affects the connection 2 or not, just thought I would provide that information. please take a look at the pictures provided and let me know what you think.

Attached Files (3)




Posted Oct 30, 2006 · 00:11 UTC#2

funtuff said:
ducatiboy

I looked at the back of my Z1 and connection 2 is not there.
Not sure where it is but I will include pictures. Also, maybe I
should provide a little history. My orginal f150 head unit is buried
in the back of the dash. It was needed for the overhead rail dvd
player to work. So the installer rigged it somehow that it still works.
I'm not sure if that affects the connection 2 or not, just thought I
would provide that information. please take a look at the pictures
provided and let me know what you think.

Well, you are right, it's not in the back there, but every Z1 came
with that connector. Who ever bought it or installed it had it at
one time. You will need to get it from the installer or original
purchaser. Having the stock radio won't interfere with connector
2, but I guess that the installer didn't need it, didn't use it and
might have just thrown it out. Is it in your box of extra parts
that were left over when you installed it?

Posted Oct 30, 2006 · 00:39 UTC#3

I had it professionally installed. All I got was the manuals. I'll call the installer and ask them for connector 2. Then what? Do I plug it in and ground that wire?

Posted Oct 30, 2006 · 00:50 UTC#4

funtuff said:
I had it professionally installed. All I got was the manuals. I'll call the installer and ask them for connector 2. Then what? Do I plug it in and ground that wire?

Well there is no wire in that location, so you will need to pull one off
one of the other locations and ground that wire, then permanently
ground the parking brake wire and you will be good to go.

Posted Oct 30, 2006 · 01:41 UTC#5

Ok, thanks...I'll let you know how it goes.

Posted Oct 30, 2006 · 03:22 UTC#6

ok you gave us the pictures but didn't give us any instruction what is olive wire connected to and what is grounded

Posted Oct 30, 2006 · 03:28 UTC#7

jlaster1999 said:
ok you gave us the pictures but didn't give us any instruction what is olive wire connected to and what is grounded

You want this site:
http://www.sminntech.com/z1flash.html

Posted Nov 09, 2006 · 23:59 UTC#8

ducatiboy,

Do you happen to know the part number for Connector 2 harness? Just wondering if I can order one from Pioneer. This Installer isn't being responsive to my request for it.

Funtuff

Posted Nov 10, 2006 · 00:06 UTC#9

funtuff said:
ducatiboy,

Do you happen to know the part number for Connector 2 harness? Just wondering if I can order one from Pioneer. This Installer isn't being responsive to my request for it.

Funtuff

No I don't. I'm sorry.
