does anyone have the pinout for the usb connector, video, and the rest of the connectors? just ordered an sph-da01 appradio without cables, can't find any reasonably priced ones so i guess ill just solder on my own. any help would be appreciated.
well, i just ordered the service manual and the unit will be here soon. if i find anything interesting ill be sure to post it.
here ya go guys. nice jpg with all the pinouts on it. these cables are just ridiculously priced... anyone who buys a unit without cables like me should be able to save a few bucks by just soldering directly to the terminals or the circuit board. if anyone needs any schematics or detailed info, i now have info for the sph-da01 and the u310bt. ill be repairing these units this week, ill share any info i learn. https://picasaweb.google.com/lh/photo/UDu_S3yiELVLMWHxyyrLXNMTjNZETYmyPJy0liipFm0?feat=directlink
btw, just as a quick intro, My name is Andres, I'm an electrical engineering student who has been working with computers and electronics for pretty much my whole life. im not very experienced with windows c.e. like some of the guru's I've seen here, but ill give what i can to the community.
Welcome! Thanks for sharing the diagram.
Dear aortizI557
Is there in your service manual AV/USB cable pinouts from Ipod/Iphone side?
Because I too bought an sph-da01 without any cables:(
i was thinking about something like that, what's your opinion ?
because on one side you have the usb iphone classic connector, and in the other the 8 pin mini din female connector of appradio...??
and this from the appradio
what's the use of mini din 8 pin ?
what's the use of usb ?

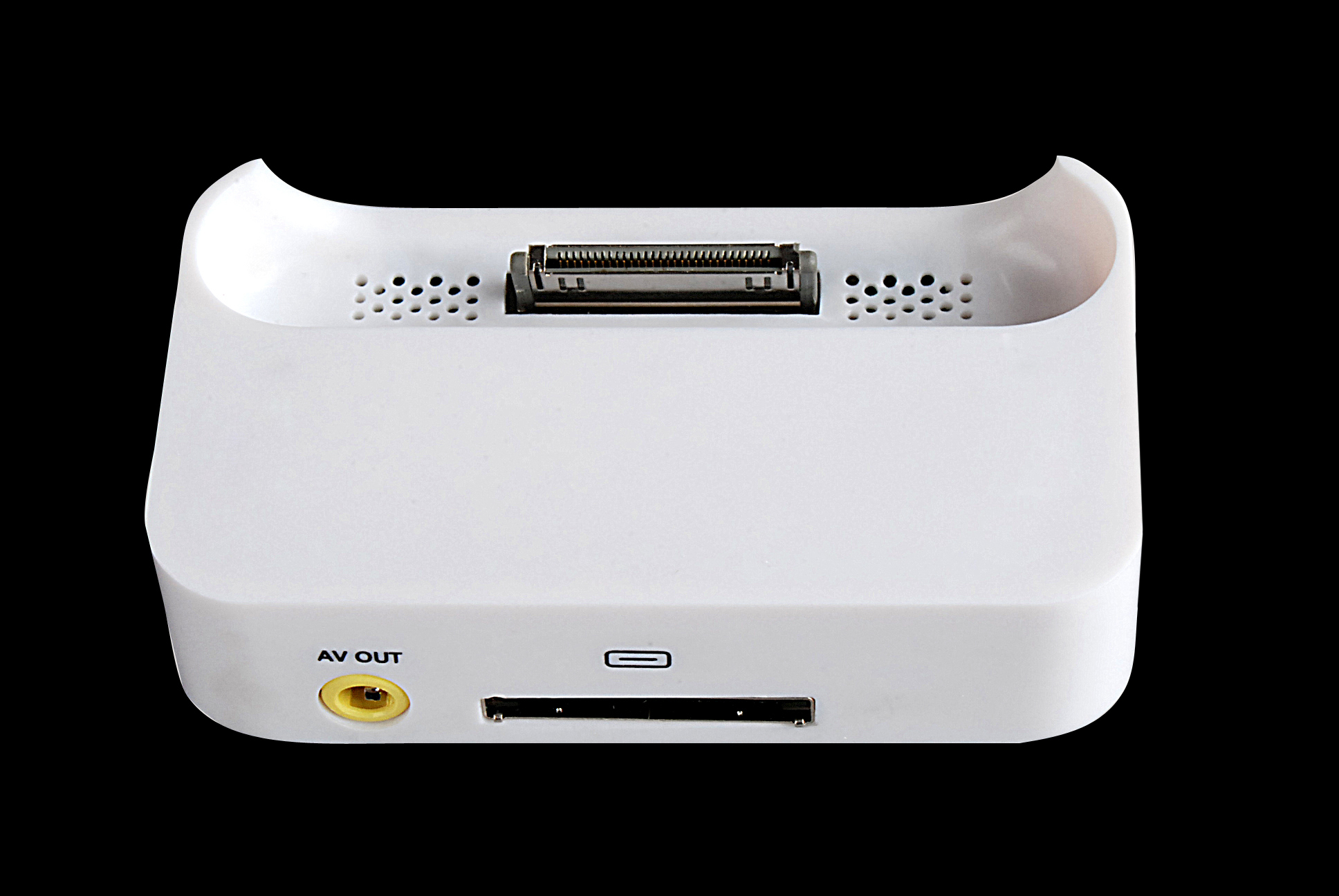

can we imagine using FINALLY an universal a/v iphone dock ?
but one point !!!!!
the mini din output of a/v iphone appradio have normally 8 pin ???? and the output of the a/v apple dock, only 7 ???
is that right, what do you think ????
personnally, i think this idea is good, but i don't know if it works ?????????????????????? ... due to 7 / 8 pin differences...
just to see....i realise that connectors don't really fit to each other..............sh""""""t
as i understand...video signal is "yuv"....
Did anybody try this 2 cables instead of using original:
Hallo, can anybody help me ?
At first, please excuse my bad english, it's not my native Language.
I've bought an used Pioneer Appradio (SPH-DA01) on e**y, unfortunately it was without the Connector from Radio to Ipod/Iphone cable.
So I serched the web for a pinout, i found on this Forum a Service Manual for the DA01, but i have no idea what that pinout means.
For example, what is:
AGND, F_RL, F_RR, IPOD_AR, IPOD_AM, IPOD_AL, V_VM, U, V, Y ????
I've also found a pinout for the Ipod/Iphone 30-pin Connector and that will be pretty clear for me.
http://www.daenotes.com/electronics/pin-out/apple-30-pin-dock-connector?language=de
Can anyone tell me which pin on radio goes to which pin on the 8-pin MiniDin-Connector ?
That will help me a lot.
The USB-Connector shoult be clear.
pin 25 - R_USB_DP = Data+
pin 26 - R_USB_DN = Data-
pin 27 - USB_GND = Ground
pin 28 - USB_5V = VBUS
Will it be right ?
I hope anyone can/would help me, otherwise my last option is to fall into infernal madness.
Thanks in advance
Juergen
I'm preatty late to the party, but does someone have still saved wiring diagrams for this unit?
