I have 06 Zephyr, I have noticed some static every so often on some channels.
I forgot what your supposed to do, to "boost" your signal? Hook up the power antenna line?
Anyone have wiring pinout of Ford 06 24 pin?
Thanks,
Burn

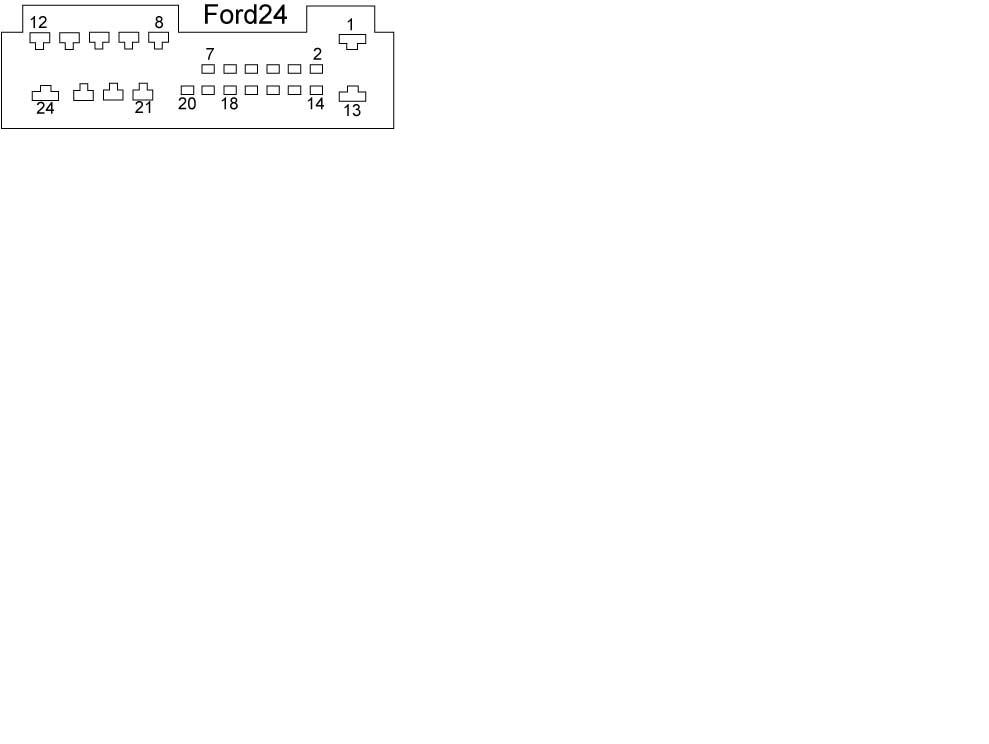

See attached.
Pin 5 is the power attena[/img]
THanks, you don't happen to have all the pin - color codes?
THanks, you don't happen to have all the pin - color codes?
From my 2006 Ford Freestar Electrical Shop Manual:
1 = Voltage supplied at all times
2 = Switched power
3 = Illumination
4 = Ground
5 = Power antenna
6 = Not used
7 = Not used
8 = Spk LF+
9 = Spk LR+
10 = Spk RR+
11 = Spk RF+
12 = Spk RF-
13 = Ground
14 = Vehical Speed Signal
15 = Voltage Supplied at Start
16 = Not used
17 = Not used
18 = Steering Wheel Contols
19 = Not used
20 = Not used
21 = Spk LF-
22 = Spk LR-
23 = Spk RR-
24 = Not used
*Note: Pin 18 is which you connect the PAC-Audio Unit SWI-PS http://pac-audio.com/products/productsC ... 0Interface
How do I know if the wire in slot 5 is the power Antenna wire?
What should the voltage read with a meter?
Reason is the pin locations you gave, I don't have any wires in 3&4, I do have a wire in 5 though.
So If put a meter on it what should it read +12v or ??
Thanks,
Burn
How do I know if the wire in slot 5 is the power Antenna wire?
What should the voltage read with a meter?
Reason is the pin locations you gave, I don't have any wires in 3&4, I do have a wire in 5 though.
So If put a meter on it what should it read +12v or ??
Thanks,
Burn
If you are using a Ford brand 2004 or newer car/truck/van/SUV then pin 5 should be around 12V when the radio is ON.
The RADIO is feeding pin 5 the 12V
Here is the pin assignents for the 06 Zephyr.
1 (BU-RD) 16 Voltage supplied at all times (overload protected)
2 (GN) 20 Accessory delay relay switched output
3 * * not used
4 * * not used
5 (VT-BK) 18 Antenna power
6 not used
7 not used
8 (WH) 20 Left front speaker +
9 (BN-GN) 20 Left rear speaker +
10 (BN-WH) 20 Right rear speaker +
11 (WH-VT) 20 Right front speaker +
12 WH-OG) 20 Right front speaker -
13 (BK-BU) 14 Ground
14 * * not used
15 (GY-BN) 20 Voltage supplied in Start (overload protected)
16 * * not used
17 * * not used
18 (GY-YE) 22 Audio steering wheel switch signal
19 (BU-WH) 22 Audio steering wheel switch return
20 * * not used
21 (WH-BN) 20 Left front speaker -
22 (BN-YE) 20 Left rear speaker -
23 (BN-BU) 20 Right rear speaker -
24 * * not used
In case you still need it.
Ken.
its a purple black wire
