Pinouts for AV-BUS? — AVIC411 Forum Archive

Posted Aug 16, 2006 · 13:19 UTC#1

Anyone have the pinouts for the AV-BUS?

Posted Apr 27, 2007 · 08:06 UTC#2

Posted Apr 27, 2007 · 16:12 UTC#3

Thanks for the reply, but I was the one that sent the pic to sportsfan many eons ago. ;)

Posted Apr 28, 2007 · 04:06 UTC#4

HTH

Attached Files (1)

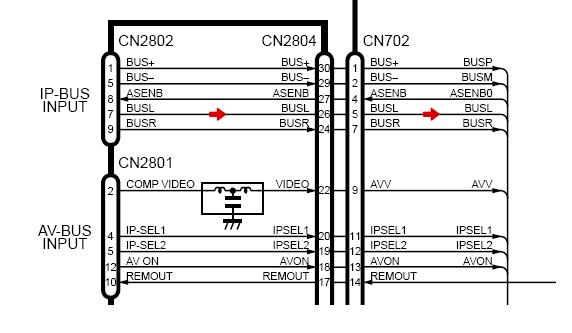

AV IP bus.JPG

Posted Apr 28, 2007 · 04:23 UTC#5

This one is a lil better

Attached Files (1)

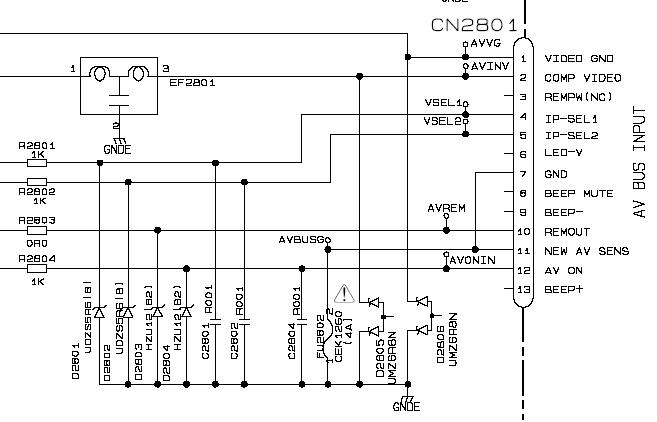

AV bus.JPG
