AVIC411.com
hendrix84

F900BT Rebooting Fix and Update

Recommended Posts

Hi everyone,



I have an F900bt unit, i tried to upgrade it through pioneer official support web, so i downloaded the v4.001000 with cnsd-200

and i ran it in the avic without checking the current version before, an error ocurred at the end of the load and

since then, the unit reboots at 4 minutes, the message "iniatializing...." doesnt disappear and im not allowed to

enter settings or maps, just av section, which seems to work before systems reboot at 4 minutes.



ive been reading and trying some things, but not being an expert i dont want to screw up again.



Could someone help showing me the links and steps i need to fix and update my unit with the best software version and latest

spanish or European maps?



Thanks!

Share this post


Link to post
Share on other sites



download this link it's my flash disk and copy them inside a sd card of  2 gb



https://drive.google.com/file/d/0B4MAukIOceEXY1FYUEtOeUdtN1k/view?usp=sharing



and after decompress take this link and put the folder nammed  testmode inside your sd card next my folder my flash disk





https://drive.google.com/file/d/0B4MAukIOceEXS0l5MC1IQ28tLVE/view?usp=sharing





put the sd card inside your avic and turn on your device when you are in windows screen  click on total commander and open at the left side storage card and at right side your flash disk and with stylet copy all files of the strorage card to your flash disk at the choice replace all your files with my flash disk





https://drive.google.com/file/d/0B4MAukIOceEXRzVFX0pSSHJtaXM/view?usp=sharing

when you do the copy of my flash disk take this link decompress the folder you have a folder lpue080



inside you have a folder nammed plt  inside you have 2 winces files take them and copy on a sd card alone with nothing else



put the sd card inside your avic turn on your device now do this



1)press 3 touch (menu,map,eject) in the same time and with stylet press the reset when the screen was black retire the stylet and after the screen was blue retire your fingers of the 3 touch



2) now do the code with joystick do this (up,up,down,press touch menu , left,right)  after this select first line (to confirm press center of joystick)  and after select the second line (with sd mmc)



3) avic read your sd card and after the message 100% writing restart your device turn off your device and retire the sd card and the avic work fine.

Share this post


Link to post
Share on other sites

this link is folder of voice   take him decompress and put the folder entire in this place (open apl2 and open igo  and open content) copy the folder when the avic write replace click on yes



https://drive.google.com/file/d/0B4MAukIOceEXRXU0YUt2TnVYLTQ/view?usp=sharing



this second link it's lang decompress and do the same i write in first



https://drive.google.com/file/d/0B4MAukIOceEXT2NoZmJWSEhoN2M/view?usp=sharing





to do this put the 2 folder inside a sd card with next him testmode and put the sd card on your avic and turn on your device and when the windows screen come



click on total commander open storage card at the left side and your flash disk at the right side and the stylet put the folder at them right place and after copy turn off your avic and retire your sd card



and restart tha avic and when the avic was in the first screen select  settings and select  system settings select lang and voice and when the avic restart  your lang and voice be activ

Share this post


Link to post
Share on other sites

download this link it's my flash disk and copy them inside a sd card of 2 gb



https://drive.google.com/file/d/0B4MAukIOceEXY1FYUEtOeUdtN1k/view?usp=sharing



and after decompress take this link and put the folder nammed testmode inside your sd card next my folder my flash disk





https://drive.google.com/file/d/0B4MAukIOceEXS0l5MC1IQ28tLVE/view?usp=sharing





put the sd card inside your avic and turn on your device when you are in windows screen click on total commander and open at the left side storage card and at right side your flash disk and with stylet copy all files of the strorage card to your flash disk at the choice replace all your files with my flash disk





https://drive.google.com/file/d/0B4MAukIOceEXRzVFX0pSSHJtaXM/view?usp=sharing

when you do the copy of my flash disk take this link decompress the folder you have a folder lpue080



inside you have a folder nammed plt inside you have 2 winces files take them and copy on a sd card alone with nothing else



put the sd card inside your avic turn on your device now do this



1)press 3 touch (menu,map,eject) in the same time and with stylet press the reset when the screen was black retire the stylet and after the screen was blue retire your fingers of the 3 touch



2) now do the code with joystick do this (up,up,down,press touch menu , left,right) after this select first line (to confirm press center of joystick) and after select the second line (with sd mmc)



3) avic read your sd card and after the message 100% writing restart your device turn off your device and retire the sd card and the avic work fine.









I have done these steps, replace files from your disk and update wince,  but the unit is in same way as before, i cant access setting or maps and the startup message doesnt dissapear...

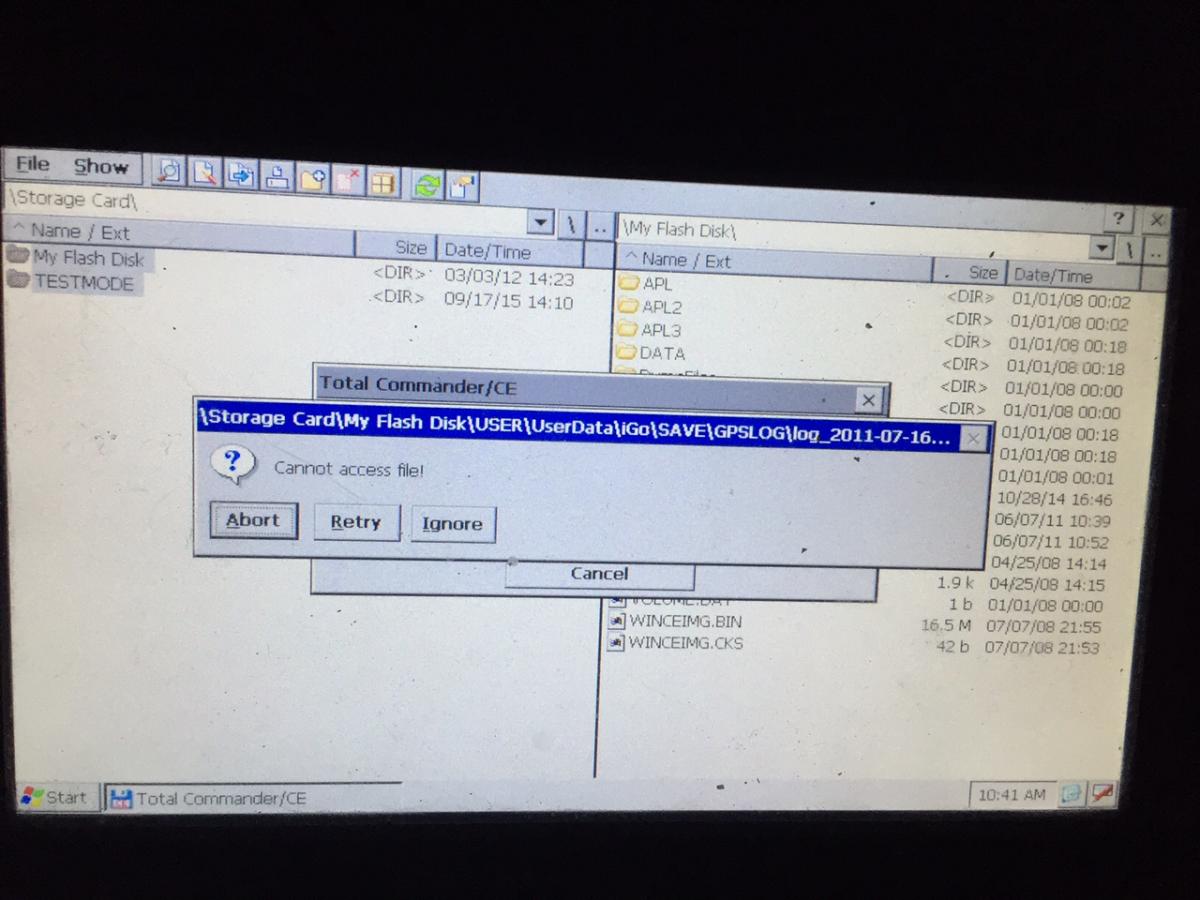

++ Well, during the replacement process some files couldnt be accesed. so i ignored them (look the photo)

      Also i have copied testmode folder... which files were not recognized.



what should i do now?


Share this post


Link to post
Share on other sites

no let testmode in your storage card if you copy them only click and stay on the folder testmode of your flash disk when the folder be in another color select delete



for the files only ignore them , are you delete your flash disk before copy my flash disk ?

Share this post


Link to post
Share on other sites

Merci beaucoup Guizmo!!



first step succesfully done, now the unit works properly and i can acces settings and maps!



Now, im going to put the lang and voices folders in.



i havent moved the car, i was in the garage and the map has located me in france, works your flash disks maps in spain ??

Share this post


Link to post
Share on other sites
